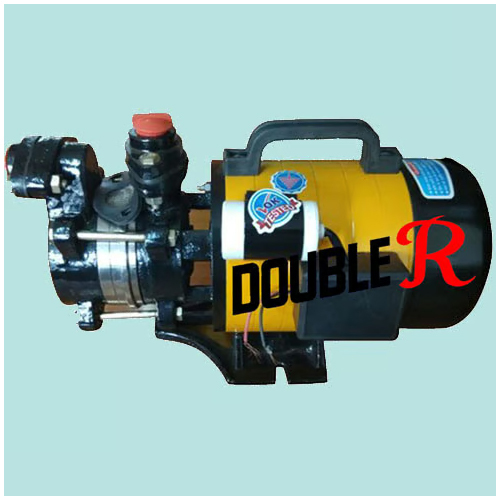

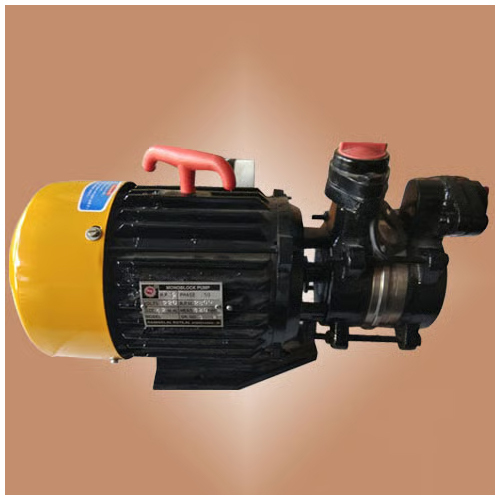

Self Priming Monoblock Pump

Get a Price/Quote

MOQ : 10 Units

Self Priming Monoblock Pump Specification

Control System
Manual ON/OFF

Mounting Type
Foot Mounted

Flow Rate
up to 3200 LPH

Voltage
220-240V (Single Phase)

Working Temperature
Up to 50C

Features
Thermal Overload Protector, Easy Installation, Sturdy Design

Inlet/Outlet
25mm x 25mm

Frequency
50 Hz

Theory
Centrifugal Pump

Discharge Pressure
Up to 3.6 bar

Caliber
25 mm

Head Size
6-36 meters

Noise Level
Low Noise Operation

Speed
2800 RPM

Max Suction
8 meters

Material
Aluminium Body, Brass Impeller

Structure
Single Stage Monoblock

Power
0.5 HP, 1.0 HP

Standard
IS:8472 Compliant

Fuel Type
Electric

Pressure
0.5-3.6 bar

Usage
Domestic and Agricultural Water Supply

Application
Water Transfer, Irrigation, Pressure Boosting

Suction Type
Horizontal Suction

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Self Priming Monoblock

Capacity
3200 LPH

Impeller Type
Brass Impeller

Bearing Type
Double Shielded Ball Bearings

Enclosure Protection
IP44

Insulation Class
Class B

Weight
Approx. 10-14 kg

Cooling Type
Air Cooled

Self Priming Time
Within 5 minutes for 5m suction

Direction of Rotation
Clockwise (when viewed from driving end)

Maximum Liquid Temperature
50C

Self Priming Monoblock Pump Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Self Priming Monoblock Pump

Buy Online the Grand Self Priming Monoblock Pump featuring an invincible Class B insulated design and a ravishing brass impeller for unmatched performance. Select from power options of 0.5 HP and 1.0 HP, ideal for both domestic and agricultural water supply. With premium aluminium construction, IP44 enclosure protection, and a self-priming time within 5 minutes for 5m suction, this pump ensures reliability. Its double shielded ball bearings and thermal overload protector combine to deliver a superb, low-noise, and robust pumping solution.

Versatile Applications for Every Need

The Self Priming Monoblock Pump is perfectly crafted for general water transfer, irrigation, and pressure boosting on surfaces such as gardens, small farms, and domestic water systems. Used by homeowners, farmers, and small business operators, its structure suits both household supply and agricultural requirements, efficiently handling water transfer and discharge with ease. Benefiting households and irrigation setups alike, this pump offers reliable performance wherever a steady water flow is essential.

Seamless Supply, Certified Quality

Our pumps boast a high supply ability, ensuring prompt order completion and swift dispatching. Each unit is rigorously tested and IS:8472 compliant, guaranteeing quality and safety throughout the arrival process. Packaging is done securely to avoid transit damage, giving confidence for traders and suppliers across India. Trust in seamless logistics and certified excellence as you receive your product, ready for instant setup and use.

FAQ's of Self Priming Monoblock Pump:

Q: How does the self priming process work in this monoblock pump?

A: The self priming feature enables the pump to automatically remove air from the suction line, ensuring it draws water efficiently within 5 minutes for a 5m suction, even after the suction pipe has emptied.

Q: What are the main benefits of selecting a brass impeller with this pump?

A: The brass impeller provides durability, corrosion resistance, and consistent flow delivery, making the pump highly reliable for residential and agricultural applications.

Q: Where can this pump be used most effectively?

A: This pump excels in domestic water supply, small-scale irrigation, garden watering, and light commercial setups-essentially anywhere steady water transfer or boosting is required.

Q: When should the pump's thermal overload protector be utilized?

A: The thermal overload protector activates if the pump overheats, preventing damage. It ensures your pump is protected during prolonged use or if operating conditions temporarily exceed its limits.
