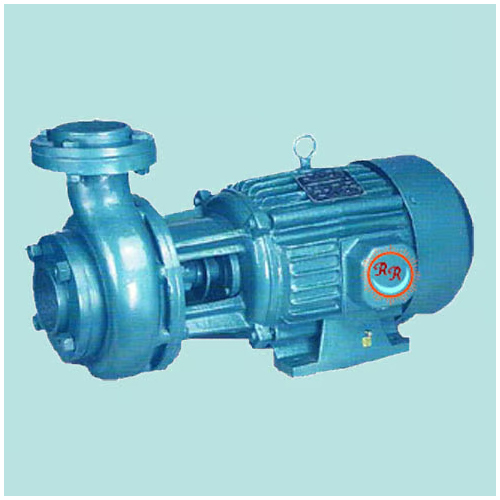

Monoblock Pumps

• Application
• Other, Water Transfer, Irrigation, Pressure Boosting

• Caliber
• 25 mm

• Capacity
• 3200 LPH

• Control System
• Manual ON/OFF

• Discharge Pressure
• Up to 3.6 bar

• Features
• Thermal Overload Protector, Easy Installation, Sturdy Design

• Flow Rate
• up to 3200 LPH

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• 6-36 meters

• Inlet/Outlet
• 25mm x 25mm

• Material
• Aluminium Body, Brass Impeller

• Max Suction
• 8 meters

• Mounting Type
• Foot Mounted

• Noise Level
• Low Noise Operation

• Power
• Other, 0.5 HP, 1.0 HP

• Pressure
• Other, 0.5-3.6 bar

• Priming
• Self Priming

• Pump Type
• Other, Self Priming Monoblock

• Seals Type
• Mechanical Seal

• Speed
• 2800 RPM

• Standard
• IS:8472 Compliant

• Structure
• Other, Single Stage Monoblock

• Suction Type
• Horizontal Suction

• Theory
• Centrifugal Pump

• Usage
• Other, Domestic and Agricultural Water Supply

• Voltage
• 220-240V (Single Phase)

• Working Temperature
• Up to 50C

• Application
• Other, Residential, commercial, agricultural irrigation

• Caliber
• 25 mm - 50 mm

• Capacity
• Varies by model

• Control System
• Manual

• Discharge Pressure
• Up to 6 Bar

• Features
• Rugged construction, easy installation and maintenance, corrosion resistant

• Flow Rate
• 50 - 180 LPM

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• Up to 60 meters

• Inlet/Outlet
• 1 x 1 to 2 x 2

• Material
• Cast Iron

• Max Suction
• 7-8 meters

• Mounting Type
• Base Mounted

• Noise Level
• Low

• Power
• Other, 0.5 HP to 3 HP

• Pressure
• Other, Moderate

• Priming
• Self-priming

• Pump Type
• Other, Monoblock Pump

• Seals Type
• Mechanical Seal

• Speed
• 2880 RPM

• Structure
• Other, Monoblock

• Suction Type
• Single

• Theory
• Centrifugal Pump

• Usage
• Other, Water lifting for domestic and agricultural purposes

• Voltage
• 220V / 380V

• Working Temperature
• 0C to 60C
