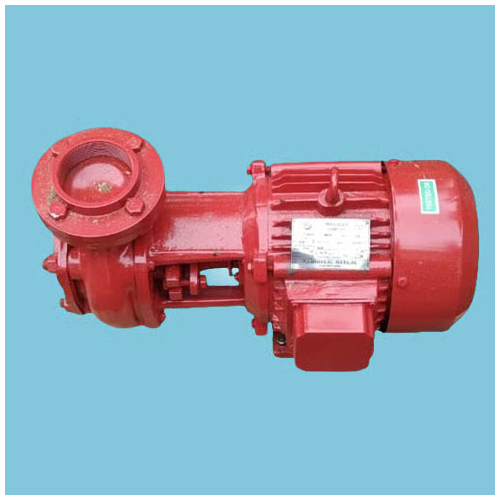

Fire Fighting Terrace Pump

Name: Fire Fighting Terrace Pump
Brand: RAMNIKLAL RATILAL
Price: 19500.0 INR
Availability: InStock

Price 19500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Fire Fighting Terrace Pump Specification

Speed
2900 RPM RPM

Caliber
50 mm

Discharge Pressure
Up to 3.8 bar

Control System
Manual/Automatic

Voltage
220-240 V Volt (v)

Inlet/Outlet
75 mm / 65 mm

Max Suction
5 m

Noise Level
<80 dB db

Mounting Type
Horizontal

Head Size
Up to 32 m

Working Temperature
0C to 80C Celsius (oC)

Flow Rate
200 to 700 LPM

Features
Compact design, Low maintenance, Suitable for continuous operation

Theory
Other

Frequency
50 Hz Hertz (HZ)

Material
Cast Iron

Structure
Single Stage Pump

Fuel Type
Other

Color
Red

Usage
Other

Application
Fire

Suction Type
Single Stage

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Monoblock

Capacity
Up to 18 m3/h m3/hr

Insulation Class
Class B or F

Connection Type
Flanged/Screwed

Protection
IP 44

Weight
Approx 18-35 kg (depending on model)

Cooling Method
TEFC (Totally Enclosed Fan Cooled)

Impeller Material
Bronze/SS (optional)

Direction of Rotation
Clockwise as viewed from coupling end

Fire Fighting Terrace Pump Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Units Per Month

Delivery Time
4 Days

Main Domestic Market
All India

About Fire Fighting Terrace Pump

5 HP Monoblock Fire Fighting Pump

Discover the Elite Fire Fighting Terrace Pump-an optimum solution engineered for robust fire protection. Featuring an insulated Class B or F motor and a brilliant choice of bronze or stainless steel impeller, this pump assures matchless performance under demanding conditions. Designed to IP44 protection standards with TEFC cooling, its single-stage centrifugal structure offers self-priming for quick operation. Available in various models, each unit provides a powerful flow rate (2.4-18 m3/h), medium pressure (up to 3.8 bar), and easy flange/screwed connections. Experience low maintenance, reliable operation, and sale prices from India's trusted manufacturer, supplier, and trader.

Surface Application and Special Features

Perfectly suited for terrace firefighting systems, the Fire Fighting Terrace Pump is ideal for installation in residential, commercial, and industrial environments. Its compact design allows seamless integration, while the robust cast iron construction and mechanical seal ensure durability. Notably, the pump operates quietly (<80 dB) and is highly efficient for continuous use, even at temperatures from 0C to 80C. Optimum for medium pressure fire protection, this pump supports both manual and automatic controls for dynamic application needs.

Export Markets and Quick Delivery

Our Fire Fighting Terrace Pump is shipped to main export markets, including Southeast Asia, Africa, and the Middle East. With stock ready and available at competitive sale prices, we ensure prompt dispatch from leading FOB ports across India. Standard delivery time is optimized to meet urgent project requirements, bringing efficiency to your procurement process. Our commitment to quality and timely shipping makes us a preferred partner for contractors and resellers worldwide.

FAQ's of Fire Fighting Terrace Pump:

Q: How is the Fire Fighting Terrace Pump installed?

A: The pump can be installed horizontally using either flanged or screwed connections, with the direction of rotation set clockwise when viewed from the coupling end. Professional assistance is recommended for optimal setup and priming.

Q: What are the key benefits of its insulation and protection class?

A: With insulation Class B or F and IP44 protection, the pump ensures high thermal and electrical safety, prolonging its service life and providing reliable operation in challenging terrace firefighting conditions.

Q: Where can the Fire Fighting Terrace Pump be applied?

A: This pump is tailored for terrace fire protection systems in residential, commercial, and industrial sites, handling water supply tasks for medium-pressure firefighting applications.

Q: What is the process for exporting these pumps?

A: Pumps are systematically packed and shipped from trusted Indian FOB ports. Stock is prepared for immediate sale and prompt delivery, streamlining international procurement for our clients.

Q: When should maintenance be performed on the Fire Fighting Terrace Pump?

A: Periodic maintenance is advisable, but thanks to its low-maintenance design and durable materials, the need for servicing is minimized, ensuring long-term, uninterrupted operation.

Q: What makes this pump suitable for continuous operation?

A: The TEFC (Totally Enclosed Fan Cooled) cooling system, combined with robust construction and mechanical seals, allows the pump to handle extended run times with minimal wear and efficient energy consumption.
