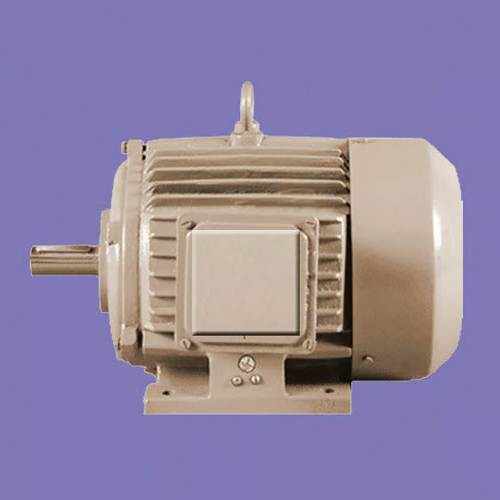

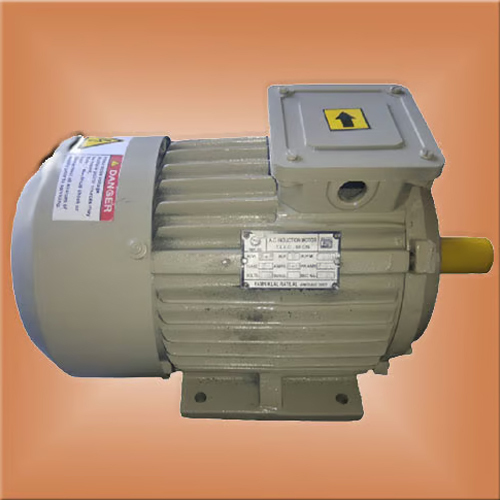

AC Induction Motor

Get a Price/Quote

MOQ : 10 Units

AC Induction Motor Specification

Cooling Method
Totally Enclosed Fan Cooled (TEFC)

Sealed Type
Sealed Bearing

Standard
IS:325/IEC 60034

Rated Voltage
415 V

Poles Number
4

Bearing Type
Deep Groove Ball Bearing

Starting Type
Direct On Line (DOL)

Motor Type
AC Induction Motor

Ambient Temperature
-15C to 40C

Noise Level
<70 dB

Torque
Full Load: 5 Nm

Rated Frequency
50 Hz

Voltage
415 V

Power Rating
0.75 kW

Current Type
AC

Efficacy
IE2

Features
High Efficiency, Rugged Design, Maintenance Free

Horse Power
1 HP

Pressure
Standard Atmospheric

Product Type
Induction Motor

Output Power
1 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed

Phase
Three Phase

Speed
1440 RPM

Power
0.75 kW

Color
Blue

Dimension (L*W*H)
305 x 215 x 240 mm

Weight
18 kg

Shaft Diameter
24 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Direction of Rotation
Bidirectional

Enclosure Material
Cast Iron Body

Thermal Protection
PTC Thermistor

Duty Cycle
S1 (Continuous)

Frame Size
90S

Insulation Class
Class F

AC Induction Motor Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About AC Induction Motor

Experience the elite performance of the renowned AC Induction Motor (Frame Size: 90S), crafted for valiant endurance and ephemeral energy loss. With a full-load torque of 5 Nm and a famed 1 HP output, this maintenance-free, high-efficiency marvel is encased in a robust cast iron body. Designed for continuous duty (S1) and protected with PTC thermistor technology, it meets IS:325/IEC 60034 and IE2 efficiency standards. Its bidirectional rotation, rugged design, and IP55 rating make it ideal for demanding industrial applications across India. Seize this sale for unrivaled reliability and legacy.

Trusted Across Diverse Industries

The AC Induction Motor is the preferred choice of elite manufacturers, suppliers, and traders throughout India, both for its reliability and performance. Widely used in manufacturing units, process plants, and automation systems, this renowned motor is suited for continuous and heavy-duty industrial tasks. Its robust TEFC construction makes it especially valuable for operations where durability and consistent output are paramount, making it ideal for applications requiring continuous operation and high efficiency.

Reliable Supply and Global Reach

Our esteemed supply chain ensures seamless transportation, expeditious shipment, and reliable arrival across India and beyond. Serving the main domestic market of India, we also cater to major export markets with efficient logistics, supporting timely delivery for large-scale industrial orders. With robust warehousing and logistics support, customers can count on prompt and secure receipt of their valiant AC Induction Motor, ensuring minimal downtime and smooth operations wherever needed.

FAQ's of AC Induction Motor:

Q: How does the PTC thermistor provide thermal protection in the AC Induction Motor?

A: The PTC thermistor integrated into the motor monitors temperature levels and acts as an automatic safety device. When excessive heat is detected, it increases resistance, limiting current flow and preventing overheating, thus safeguarding the motor against potential damage.

Q: What are the key benefits of a cast iron enclosure for this AC Induction Motor?

A: The robust cast iron enclosure delivers outstanding mechanical strength and superior resistance to wear, corrosion, and external impacts, ensuring the motor's longevity and dependable operation even in harsh industrial settings.

Q: Where can this 1 HP AC Induction Motor be typically used?

A: This elite AC Induction Motor is widely implemented in industries such as manufacturing, automation, processing units, and conveyor systems, especially where continuous, high-efficiency operation and reliability are sought after.

Q: What is the process for mounting this motor?

A: The AC Induction Motor is designed for foot mounting. Simply align the foot holes with the base plate and securely fasten using high-strength bolts. Ensure the mounting surface is stable for optimal performance.

Q: How does the IE2 efficiency rating contribute to energy savings?

A: IE2 motors are internationally recognized for improved efficiency and lower energy consumption. The higher efficacy means your operations run with reduced electricity costs while delivering reliable output, making the motor both economical and environmentally friendly.
