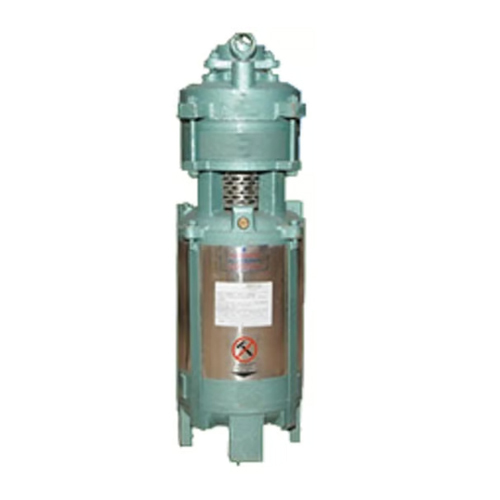

Vertical Openwell Submersible Pump

Get a Price/Quote

MOQ : 10 Units

Vertical Openwell Submersible Pump Specification

Head Size
Up to 32 meters

Fuel Tank Capacity
Not Applicable (Electric powered)

Noise Level
Low noise operation

Mounting Type
Submersible/Openwell

Features
Rust-resistant, energy efficient, easy installation, compact size

Control System
Manual/Starter Control

Speed
2800 rpm (synchronous)

Voltage
220-240V AC single phase or 380-415V AC three phase

Theory
Centrifugal Pump

Caliber
50 mm (2 inch)

Working Temperature
0C to 40C

Inlet/Outlet
50 mm x 50 mm

Frequency
50 Hz

Flow Rate
Up to 220 LPM

Max Suction
Openwell application; submersible, not self-primed suction

Discharge Pressure
Variable, depends on model and head

Material
Stainless Steel/Cast Iron/Brass (as per model)

Structure
Vertical Monoblock

Power
0.5 HP to 10 HP

Standard
Conforms to IS 14220 or equivalent

Fuel Type
Electric

Pressure
Designed to suit 1.0 to 3.2 kg/cm2 (depending on head and model)

Usage
Water supply, irrigation, agriculture, industrial applications

Application
Openwell; domestic/agricultural/industrial water lifting

Suction Type
Submersible (Openwell)

Seals Type
Mechanical Seal

Priming
No priming required (submersible type)

Pump Type
Vertical Openwell Submersible

Capacity
Wide capacity range depending on model

Bearings
Heavy-duty deep groove ball bearings

Protection Class
IP68

Cooling Provision
Submerged operation for continuous cooling

Insulation Class
B or F

Impeller Type
Dynamically balanced, made of bronze or stainless steel

Installation Position
Vertical

Cable Length
Up to 20 meters (customizable)

Duty Cycle
Continuous Duty (S1)

Motor Type
Water-cooled, squirrel cage induction motor

Vertical Openwell Submersible Pump Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Vertical Openwell Submersible Pump

Experience the preeminent performance of our Vertical Openwell Submersible Pump, engineered for optimum efficiency and enviable durability. This exclusive pump features a dynamically balanced impeller of bronze or stainless steel, with a water-cooled, squirrel cage induction motor safeguarded by insulation class B/F and IP68 protection. The heavy-duty deep groove ball bearings and mechanical seal ensure top endurance. Customizable cable lengths, rust-resistant construction, and energy-efficient operation make this pump ideal for diverse water supply, irrigation, and industrial applications-truly the enviable choice for discerning customers.

Optimum Features and Versatile Applications

Gain enviable advantages with our Vertical Openwell Submersible Pump. Its rust-resistant, compact structure ensures easy installation, while continuous duty operation (S1) supports applications in domestic water lifting, agricultural irrigation, and industrial settings. Designed for submerged, vertical installation, this pump delivers variable pressure and a robust flow rate up to 220 LPM. Energy-efficient and silent, it offers exclusive performance in environments where top reliability and modularity are essential.

Sample Availability and Efficient Delivery Process

Explore our preeminent product with sample availability upon request. Serving the main domestic market throughout India, our supply ability is tailored to ensure swift order completion and reliable delivery. Each order is carefully processed and handed over in optimum time, reinforcing our commitment to customer satisfaction and quality assurance. Rely on our trustworthy service, from initial inquiry to final installation, for an exclusive pumping solution.

FAQ's of Vertical Openwell Submersible Pump:

Q: How can the Vertical Openwell Submersible Pump be customized to suit specific requirements?

A: The pump offers customizable cable length up to 20 meters and can be configured with different materials like stainless steel, cast iron, or brass. Please specify your preferences when placing your order for optimum compatibility.

Q: What are the main benefits of using this pump for agricultural and industrial applications?

A: The Vertical Openwell Submersible Pump provides continuous duty operation, energy efficiency, and rust resistance, making it preeminent for providing reliable water supply in irrigation, domestic, and industrial processes.

Q: Where can this submersible pump be installed?

A: This exclusive pump is designed for submerged installation in openwells, functioning in vertical positions for domestic, agricultural, and industrial water lifting applications.

Q: What is the process for ordering and receiving this pump in India?

A: Upon order placement, our team processes your request, prepares the product as per your specifications, and ensures prompt delivery. Orders are handed over within the agreed delivery timeline for optimum satisfaction.

Q: How does the dynamically balanced impeller contribute to the pump's performance?

A: A dynamically balanced impeller provides smooth operation, reduces vibration, and maximizes efficiency, ensuring enviable durability and optimal performance throughout the pump's service life.
