Borewell Pumps

• Application
• Other, Deep Borewell Water Extraction

• Caliber
• V10 (approx. 250 mm bore size)

• Capacity
• Up to 72,000 liters/hour

• Control System
• Starter Panel/Automatic Control

• Discharge Pressure
• High Pressure

• Features
• Corrosion Resistance, High Efficiency, Maintenance Free, Low Power Consumption

• Flow Rate
• Up to 72 m3/hr (varies by model)

• Frequency
• 50 Hz

• Fuel Tank Capacity
• Not Applicable (Electric Driven)

• Fuel Type
• Other, Electric

• Head Size
• Up to 375 meters

• Inlet/Outlet
• Variable, depending on model

• Material
• Stainless Steel/High-grade Cast Iron

• Max Suction
• Submersible (Designed for underwater/sump operation)

• Mounting Type
• Vertical Mounting (submerged service)

• Noise Level
• Low Noise Operation

• Power
• Other, 5.5 HP up to 60 HP depending on model

• Pressure
• Other, Up to 37.5 bar depending on model

• Priming
• Self-priming in submerged condition

• Pump Type
• Other, Water Filled Submersible Pump

• Seals Type
• Mechanical Seal

• Speed
• 2800 RPM (synchronous speed)

• Standard
• IS 8034, ISO 9001 Certified

• Structure
• Other, Multi-Stage, Vertical

• Suction Type
• Submersible

• Theory
• Centrifugal Pump

• Usage
• Other, Agricultural, Industrial, Irrigation, Water Supply

• Voltage
• 380-415V AC, 50 Hz

• Working Temperature
• Up to 40C

• Application
• Other, Borewell Water Supply, Agriculture, Industry

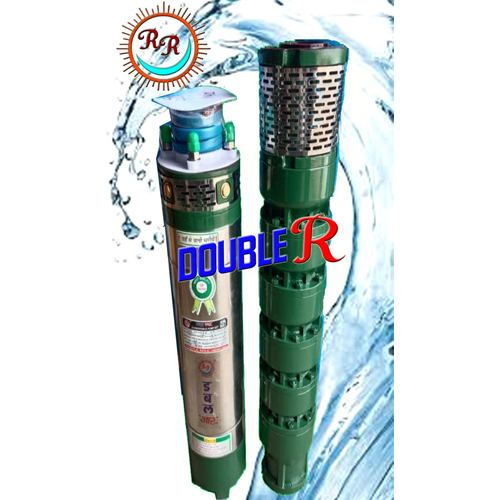

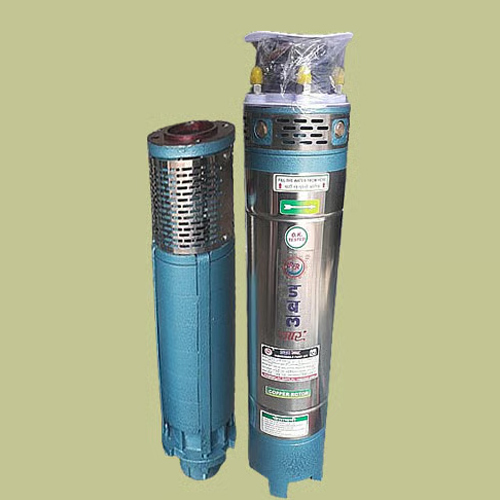

• Caliber
• V6 (6 Inch)

• Capacity
• Depends on Model (Up to 30 m3/hr)

• Control System
• Manual/Automatic Starters

• Discharge Pressure
• Up to 30 Bar

• Features
• Energy Efficient, Corrosion Resistant, Robust Design, Maintenance Free

• Flow Rate
• 150-350 LPM

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• Up to 300 meters

• Inlet/Outlet
• 50 mm / 50 mm (2 x 2)

• Material
• Stainless Steel & Cast Iron

• Max Suction
• Not Applicable (Submersible)

• Mounting Type
• Vertical

• Noise Level
• Low

• Power
• Other, 5 HP - 25 HP

• Pressure
• Other, High Pressure Discharge

• Priming
• Self Priming

• Pump Type
• Other, Borewell Submersible

• Seals Type
• Mechanical Seal

• Speed
• 2800 RPM

• Standard
• ISI Certified

• Structure
• Other, Submersible Pump Set

• Suction Type
• Submersible

• Theory
• Centrifugal Pump

• Usage
• Other, Water Lifting / Irrigation / Industrial / Domestic

• Voltage
• 380-415V (Three Phase)

• Working Temperature
• 5C - 50C

• Application
• Other, Agricultural, Domestic, Industrial

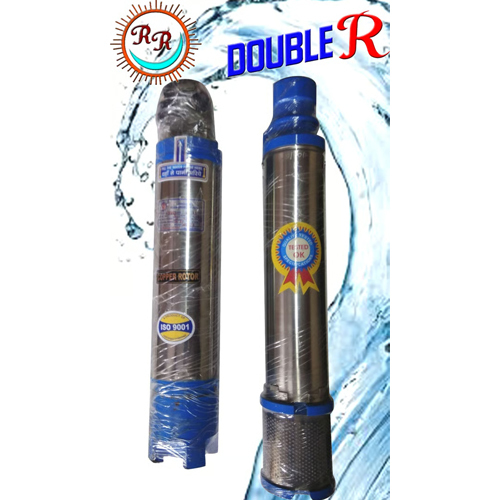

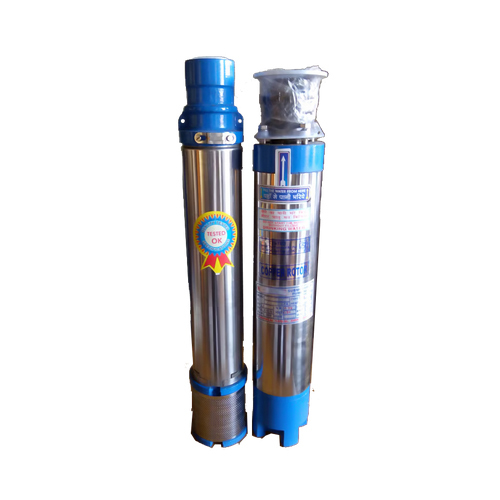

• Caliber
• 100 mm (4 Inch)

• Capacity
• Up to 4 m3/hr

• Control System
• Manual / Automated

• Discharge Pressure
• Up to 12 Bar

• Features
• Rust Resistant, Energy Efficient, Maintenance Free

• Flow Rate
• Up to 80 LPM

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• Up to 120 meters

• Inlet/Outlet
• 32 mm / 32 mm

• Material
• Stainless Steel / High Grade Cast Iron

• Max Suction
• Not Applicable (Submersible Type)

• Mounting Type
• Vertical Mounting

• Noise Level
• Low Noise Operation

• Power
• Other, 0.5 HP to 5.0 HP

• Pressure
• Other, High Pressure Output

• Priming
• Self-Priming (Submerged)

• Pump Type
• Other, Borewell Submersible Pump

• Seals Type
• Mechanical Seal

• Speed
• 2800 RPM

• Standard
• ISI Marked / ISO Certified

• Structure
• Other, Vertical Multistage

• Suction Type
• Submersible

• Theory
• Centrifugal Pump

• Usage
• Other, Borewell Water Supply

• Voltage
• 220-240V (Single Phase) / 380-415V (Three Phase)

• Working Temperature
• 0-50C

• Application
• Other, Borewell Water Lifting

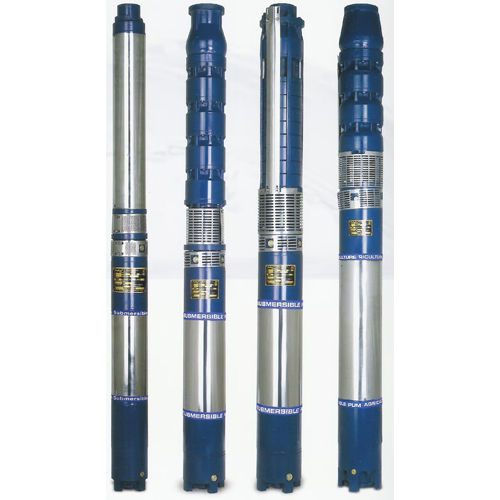

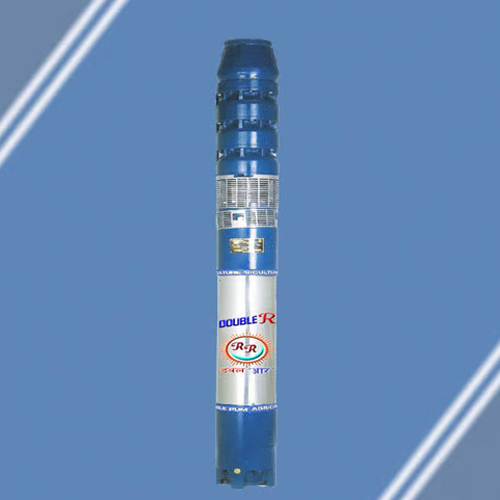

• Caliber
• 8 inch

• Capacity
• Up to 54 m3/hr

• Control System
• Automatic / Manual

• Discharge Pressure
• Up to 35 bar

• Features
• Corrosion Resistant, Energy Efficient, Maintenance-free

• Flow Rate
• 400-900 LPM

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• Up to 300 meters

• Inlet/Outlet
• 100 mm / 80 mm

• Material
• Stainless Steel / Cast Iron

• Max Suction
• Submersible (for deep well) - not applicable

• Mounting Type
• Vertical

• Noise Level
• Low Noise Operation

• Power
• Other, 7.5 HP to 40 HP

• Pressure
• High Pressure

• Priming
• Self-priming

• Pump Type
• Other, Borewell Submersible

• Seals Type
• Mechanical Seal

• Speed
• 2800 rpm

• Structure
• Other, Multistage Submersible Pumpset

• Suction Type
• Radial / Mixed Flow

• Theory
• Other, Centrifugal

• Usage
• Other, Agricultural, Industrial, Irrigation, Water Supply

• Voltage
• 380-415V AC Three Phase

• Working Temperature
• Up to 50C
